RD14250 - Electric Bolt for Auto Sliding

Automatic Door Electric Bolt Witch Lock Folder is carefully designed to be sued in conjunction with the access control system. Thus, it capable of being easily installed on the glass doors even without the top or bottom frames in various circumstances.

Radiant Automatic Sliding Door Electric Bolt Lock Features:

▪ Compatible with the access controller to control the door.

▪ Fixed on glass doors, wooden doors, iron gate & fireproof doors.

▪ Best suitable for Wooden Door, Glass Door, Metal Door, Glass Door and many other similar and commonly used doors.

▪ Security type: Automatically unlocks the door when power off.

▪ Specially designed, tested over 500000 cycles.

▪ Operation with low temperature

▪ Reliable and lasts longer.

▪ Low Temperature, safe & Durable

▪ Low Power, Environmental Protection

▪ Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt

▪ MOV Provides Reverse Current Protection

▪ Easy to install and operate.

SPECIFICATION
Lock Body Temperature	<40 。 C (under room temperature 25 。 C )

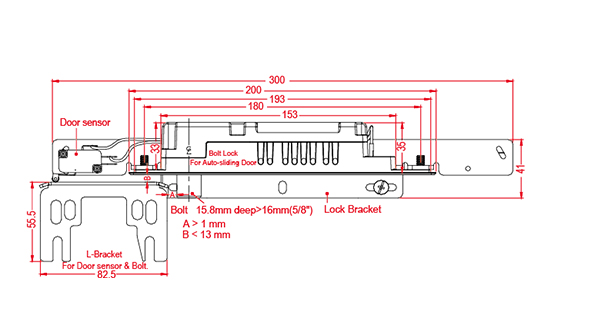

Bolt length	16mm (5/8")
Bolt dia	15.8mm (5/8")
Time Delay	0 , 3 , 6 , 9
Voltage	12VDC / 24VDC (option)
Current Draw	Star : 0.98 / 12VDC : 0.55A / 24VDC , Standby : 0.24mA / 12VDC , 0.15mA / 24VDC
Lss Relay	COM1 , NO , NC (MAX . 30VDC ; 1A)
Output signal for auto door	COM2 , NO
