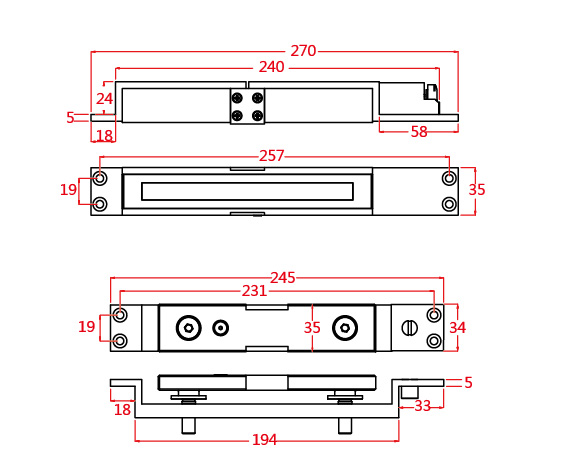

RDM01 - MAGNETIC SHEARLOCK- 1200 LBS

Radiant shear lock offers the advantage of a totally concealed locking mechanism, providing superior security and appearance while allowing for normal door movement. The patented design incorporates locking tabs on the magnet assembly with mating grooves in the armature plate. Superior hold force with advanced microprocessor controlled electronic features including auto sensed voltage, auto re-locking, adjustable re-lock time delay and options for integrating into an access control system.

� In-swing/Out-swing door/Double action door

� Adjustable door status position for improved security

SPECIFICATION
Black Painted bracket
Built-in voltage spike suppressor
Holding Force	1200LBS
Voltage	12V/24VDC (Selectable)
Signal	Lock status sensor (Hall), Timer
Current Draw	1.6A/12VDC, 0.3A /24VDC
Special Finish	Zinc (on the magnet & armature plate)
