RDGL1200 SERIES 1200 LBS WATERPROOF LOCKS

Radiant single door waterproof outdoor gate lock,specially used to out glass door,wooden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frame-less glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.

� For outdoor use (water-proof) - all inner components are well sealed and be protected from environmental damages.

� Three meters long power cable for convenient installation

� Horizontal or vertical installation

MODELS

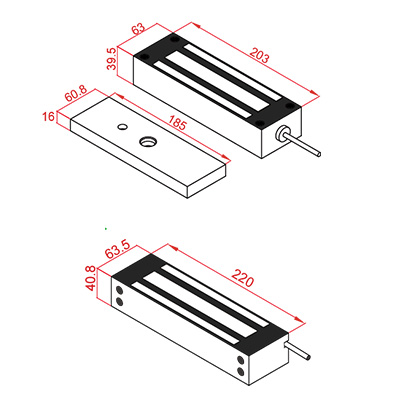

� RDGL1200: Gatelock 1200P Unmonitored, Face mounted (203Lmm)

� RDGL1200S: Gatelock 1200P Unmonitored, Side mounted (220Lmm)

� RDGL1200R: Gatelock 1200P W/Lock status sensor, Face mounted (203Lmm)

� RDGL1200SR: Gatelock 1200P W/Lock status sensor, Side mounted(220Lmm)

SPECIFICATION
Stainless steel housing
Built-in voltage spike suppressor
Holding Force	1200LBS
Voltage	12V/24VDC (Selectable)
Current Draw	500mA/12V , 250mA /24V
Special Finish	Zinc (on the magnet & armature plate)
