RD12124 SERIES ELECTRIC STRIKE - USA TYPE

Radiant electric strike is the heavy-duty-type ANSI standard fail-safe electric strike lock with feedback signal output. It works with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc. Site convertible from one mode to the other (Fail secure default, unless specified on order)

MODEL

� RD12124SL: Aluminium faceplate fail secure, W/lock monitor 12VDC

� RDT12124SLD: Stainless steel faceplate fail secure W/door, lock monitor 12VDC

� RD12124FSL: Aluminium faceplate fail safe, W/lock monitor 12VDC

� RDT12124FSLD-24：Stainless steel faceplate, fail safe W/door, lock monitor 24VDC

SPECIFICATION

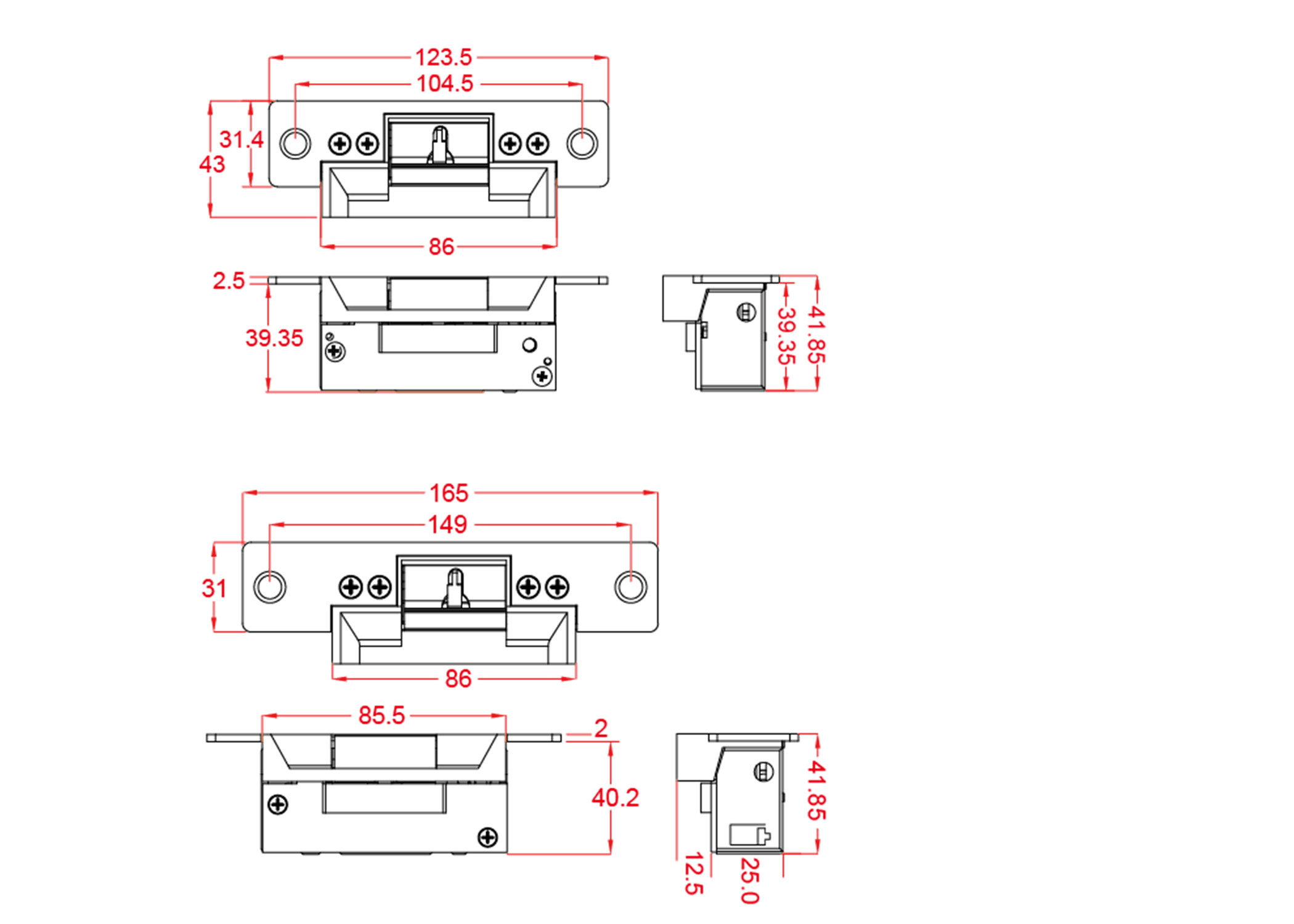

Aluminium Faceplate	123.5L31.4W2.5T mm
Stainless Faceplate	165L31W2T mm
Door Latch	1/2"(12.7mm)
Keeper Depth	12.7 mm
Fail secure	12VDC / 400mA
Fail secure	24VDC / 200mA (Specify on order)
