RD12160J SERIES ELECTRIC STRIKE - EUROPEAN

Radiant electric strike is the heavy-duty-type ANSI standard fail-safe electric strike lock with feedback signal output. It works with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc.

ï¿½ Site convertible from one mode to the other (Fail secure default, unless specified on order)

ï¿½ Direct installation on Wooden, PVC, metal door frame with mounting hole

ï¿½ Made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation

SPECIFICATION
Keeper Depth	6 mm
Door Latch	9 mm

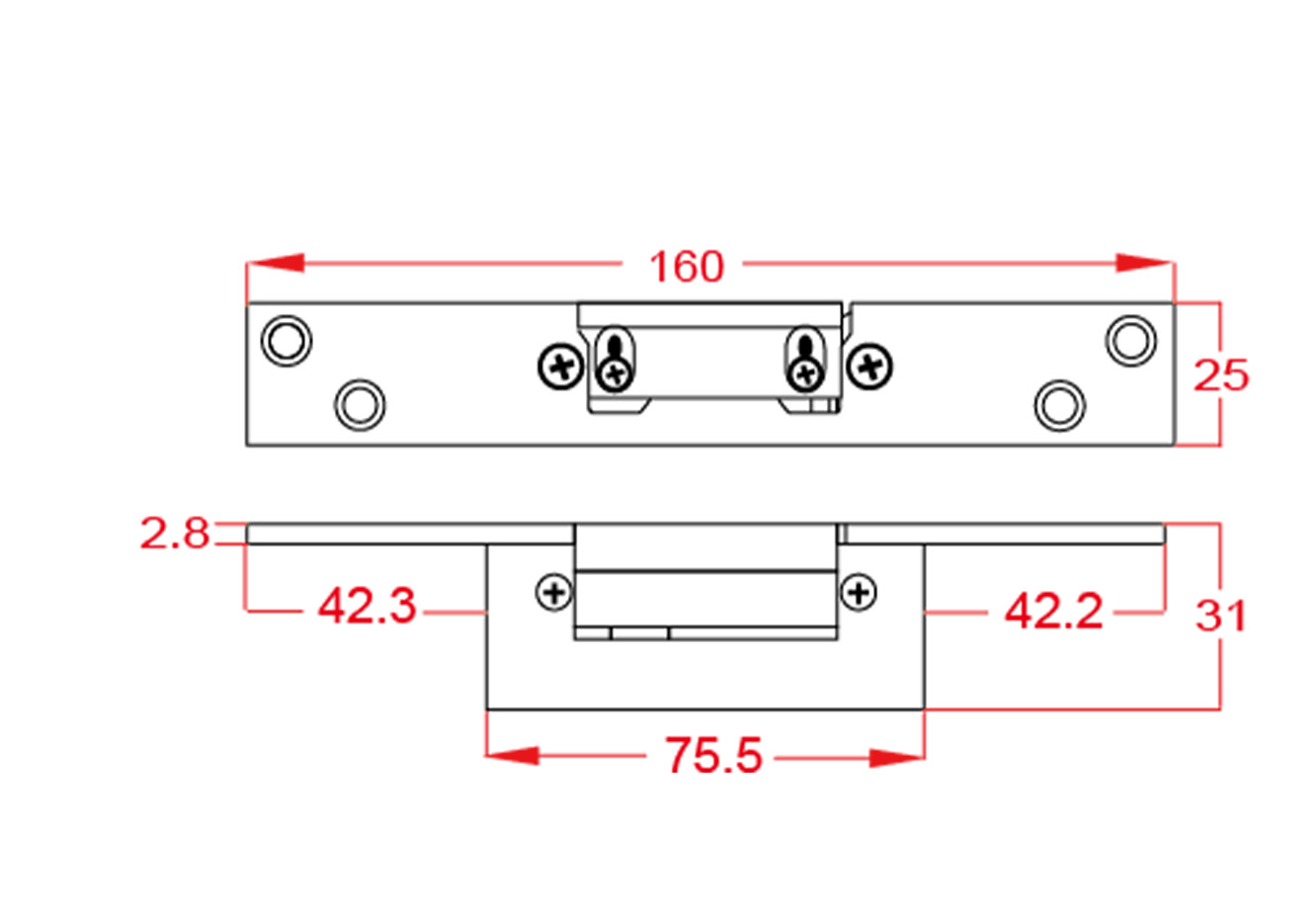

Steel faceplate	160L25W2.8T mm
Stainless steel faceplate	160L25W2.8T mm
Fail secure	12VDC / 600mA
Fail secure	24VDC / 300mA (Specify on order)
Fail safe	12VDC / 280mA
Fail safe	24VDC / 140mA (Specify on order)
