RD12160 SERIES- ELECTRIC STRIKE - EUROPEAN

Radiant electric strike is the heavy-duty-type ANSI standard fail-safe electric strike lock with feedback signal output. It works with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc.

ï¿½ RD12160: Steel faceplate fail secure 12VDC

ï¿½ RDT12160: Stainless steel faceplate fail secure 12VDC

ï¿½ RD12160F: Steel faceplate fail safe 12VDC

ï¿½ RDT12160F-24: Stainless steel faceplate fail safe 24VDC

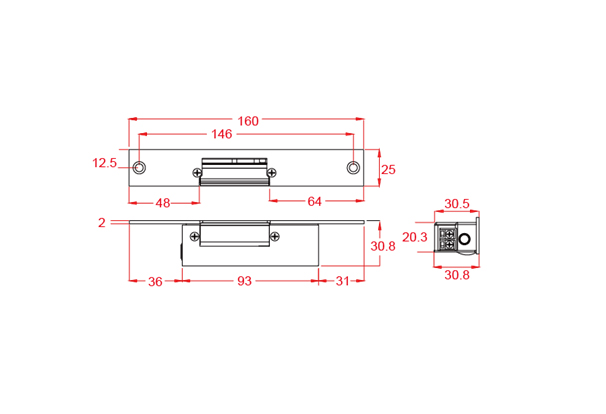

SPECIFICATION
Steel Faceplate	250L25W3T mm
Stainless Faceplate	250L25W3T mm
Door Latch	3/8"(9.5mm)
Keeper Depth	9.6 mm
Fail secure	12VDC / 400mA
Fail secure	24VDC / 200mA (Specify on order)
Fail safe	12VDC / 200mA
Fail safe	24VDC / 100mA (Specify on order)
